Products Description

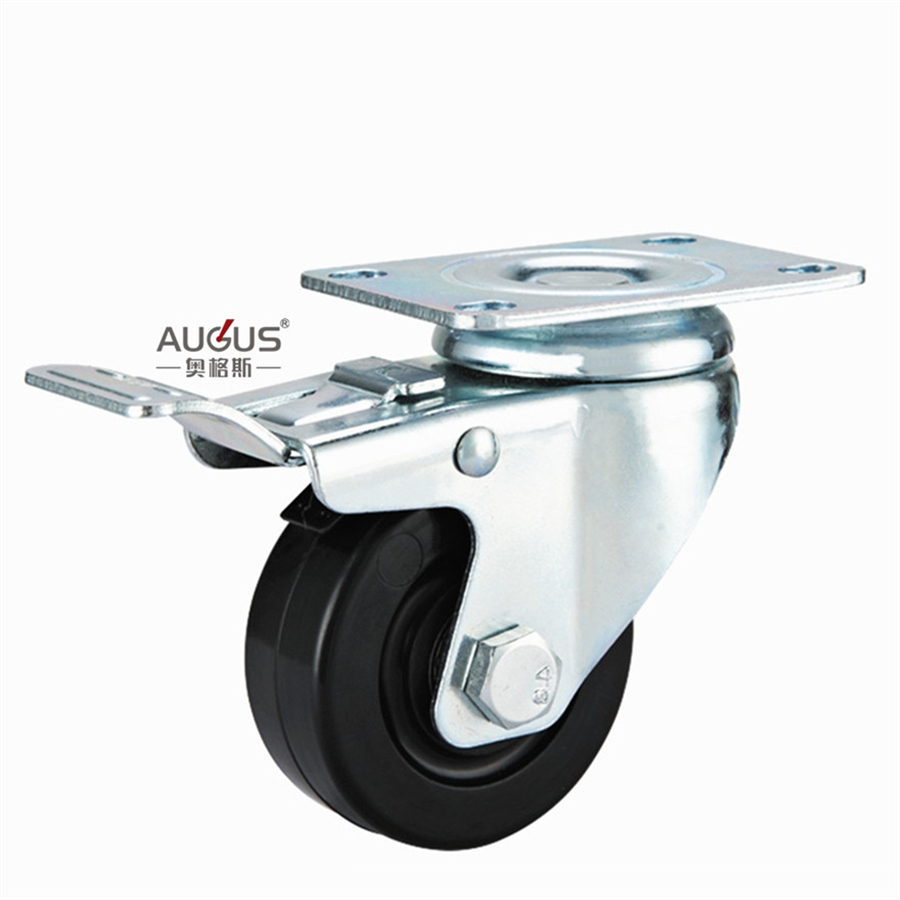

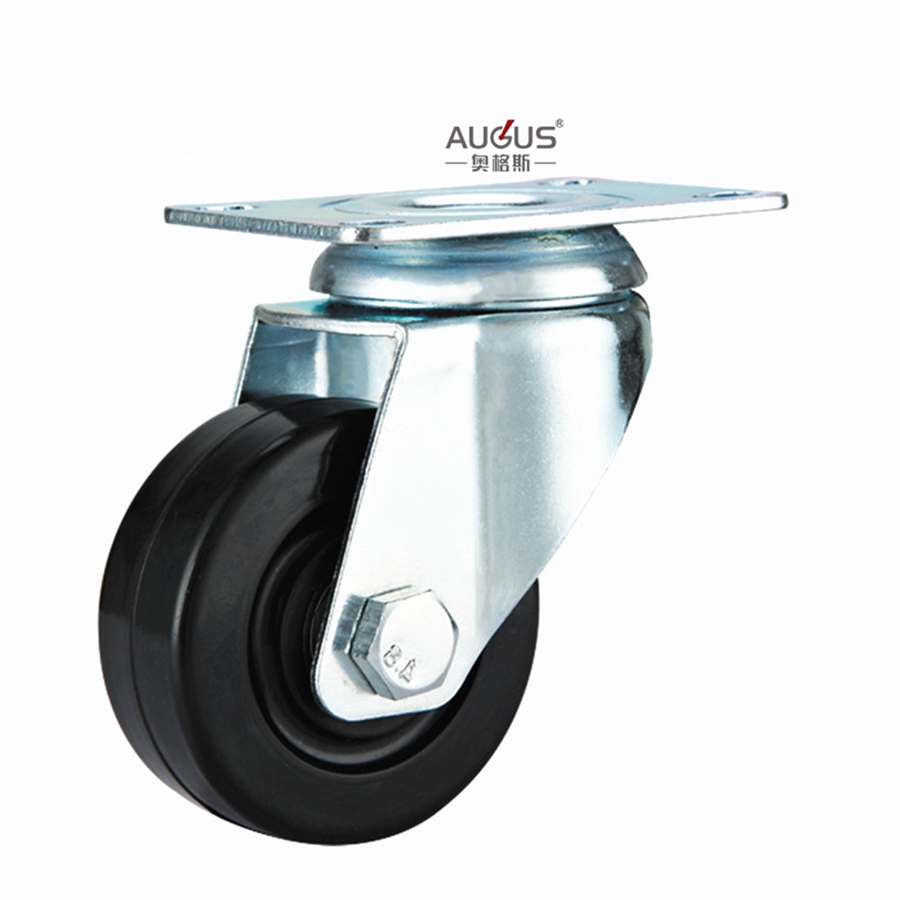

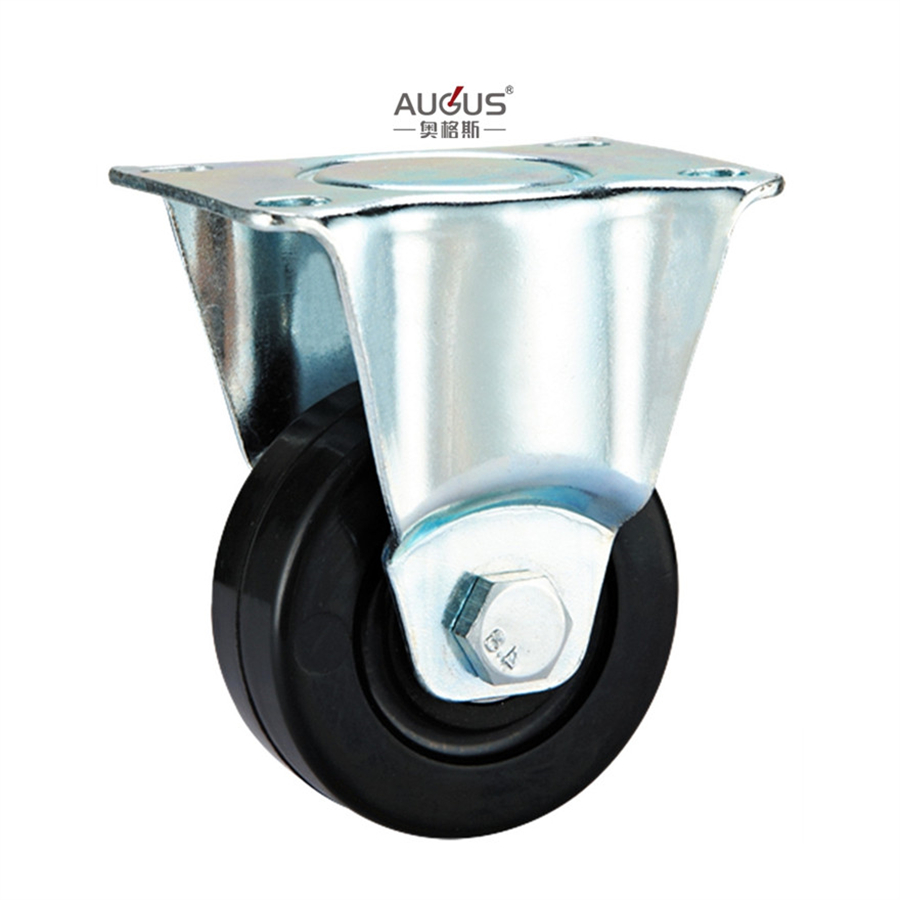

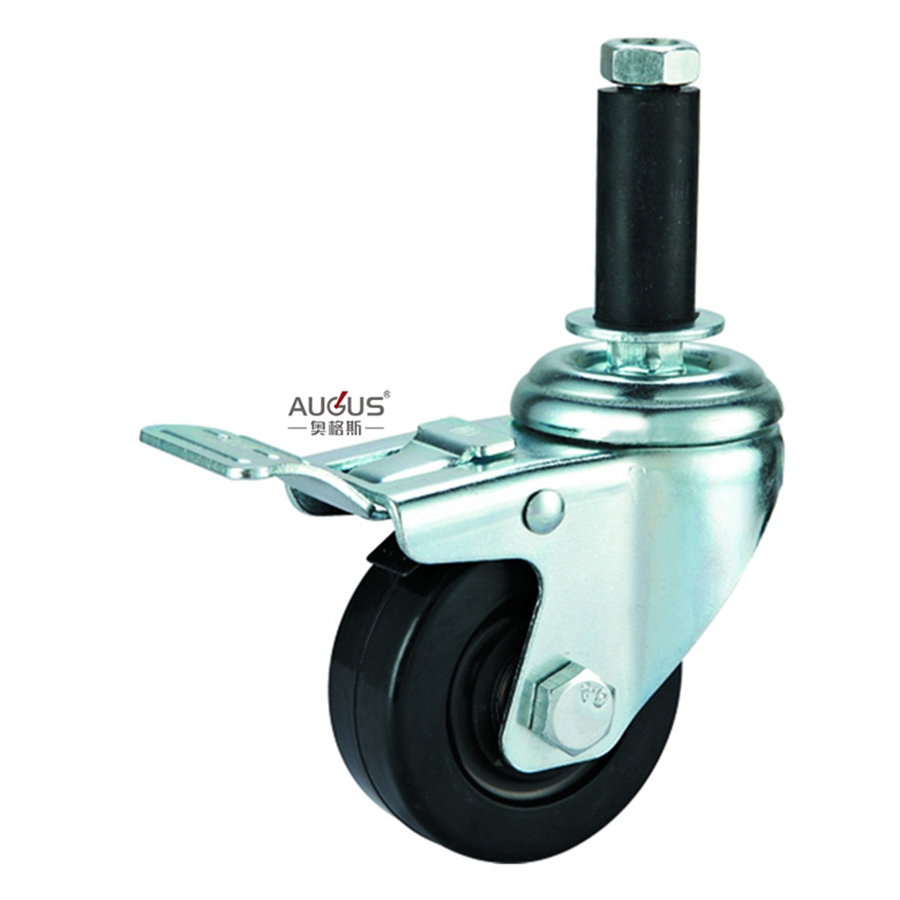

MEDIUM DUTY CASTER WHEEL
Description: Fix, Flexible, Screw，Hole Topped, Bolt。
Brake mode: Dual brake /Side brake/ Plastic brake
Housing made of pressed steel / Stainless Steel 304, black Lacquer, blue zinc plated.
Wheel install with axle and nut & bushing, Double ball bearing, Roller bearing
Alternative wheel materials: PU /PP/PA/TPR/Elastic Rubber/ PVC/Aluminum Core PU/Iron core PU/ Antic-Static TPR/ Black Rubber
Product Paramenters
TECHNICAL DATA
|
Detail |
2.5 inch |
3 Inch |
4 Inch |
5 Inch |
|
Wheel diameter (mm) |
65 |
75 |
100 |
125 |
|
Tread width(mm) |
32 |
32 |
32 |
32 |
|
Overall height(mm) |
95 |
107 |
130 |
155 |
|
Load Capacity(KGS) |
60 |
80 |
100 |
130 |
|
Size of Plate(mm) |
94 x 67 |
94 x 67 |
94 x 67 |
94 x 67 |
|
Hole centre(mm) |
74.5 x 45 |
74.5 x 45 |
74.5 x 45 |
74.5 x 45 |
|
Screw Size |
M12*30 |
M12*30 |
M12*30 |
M16*30 |
|
Installation Mode |
Fixed Plate Screw Hole topped Bolt |
Fixed Plate Screw Hole topped Bolt |
Fixed Plate Screw Hole topped Bolt |
Fixed Plate Screw Hole topped Bolt |
Details Images
