Products Description

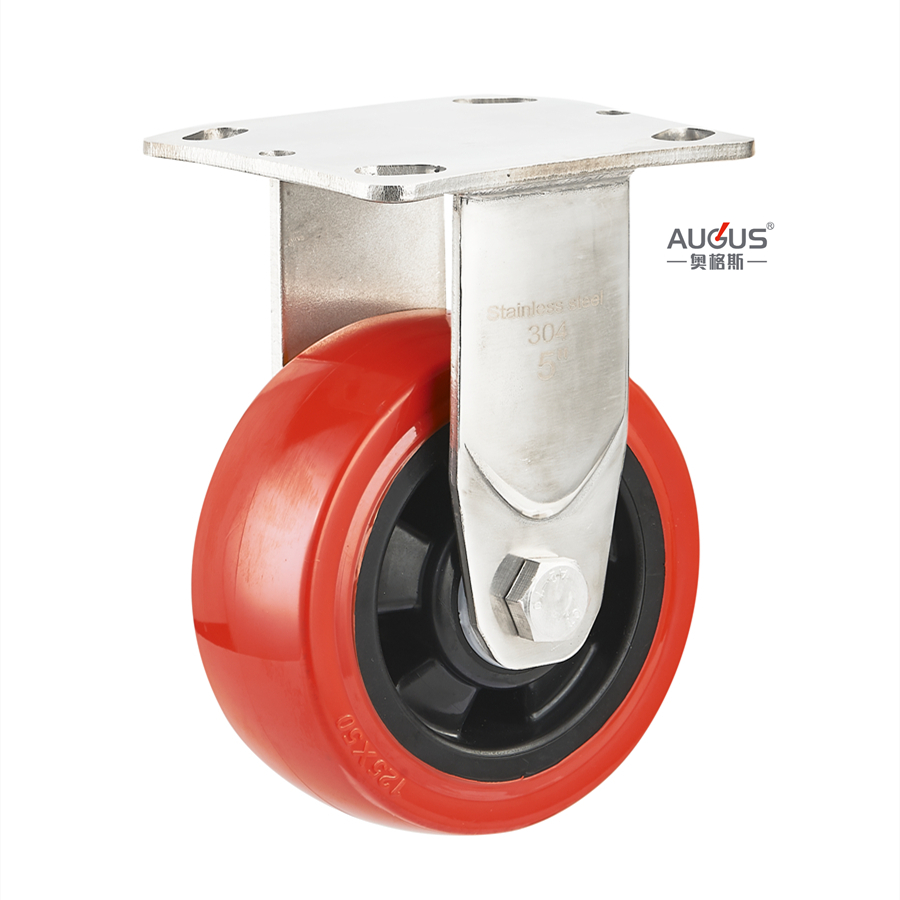

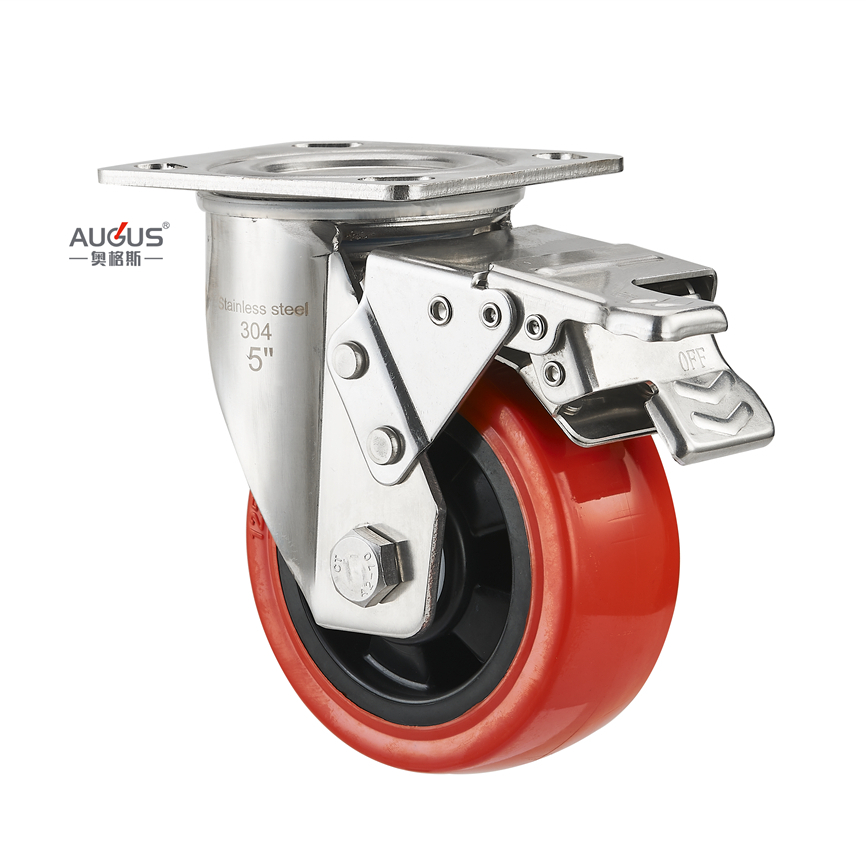

HEAVY DUTY CASTER WHEEL
Brake mode: Dual brake / Side brake
Housing made of pressed steel/ Stainless Steel 304, black Lacquer, blue zinc plated.
Wheel install with axle and nut & bushing, Double ball bearing/Roller bearing
Alternative Wheel materials: PU / PP / PA/ TPR/ ELASTIC RUBBER/ PVC/ Iron Core PU/ Aluminum Core PU
TECHNICAL DATA
|
Details |
4 Inch |
5 Inch |
6 Inch |
8Inch |
|
Wheel diameter (mm) |
100 |
125 |
150 |
200 |
|
Tread width (mm) |
50 |
50 |
50 |
50 |
|
Overall height (mm) |
135 |
159 |
189 |
238 |
|
Load Capacity (KGS) |
200 |
250 |
300 |
350 |
|
Size of Plate (mm) |
115 x 110 |
115 x 110 |
115 x 110 |
115 x 110 |
|
Hole centre (mm) |
92 x 76 |
92 x 76 |
92 x 76 |
92 x 76 |
|
Installation mode |
Fixed Plate |
Fixed Plate |
Fixed Plate |
Fixed Plate |
