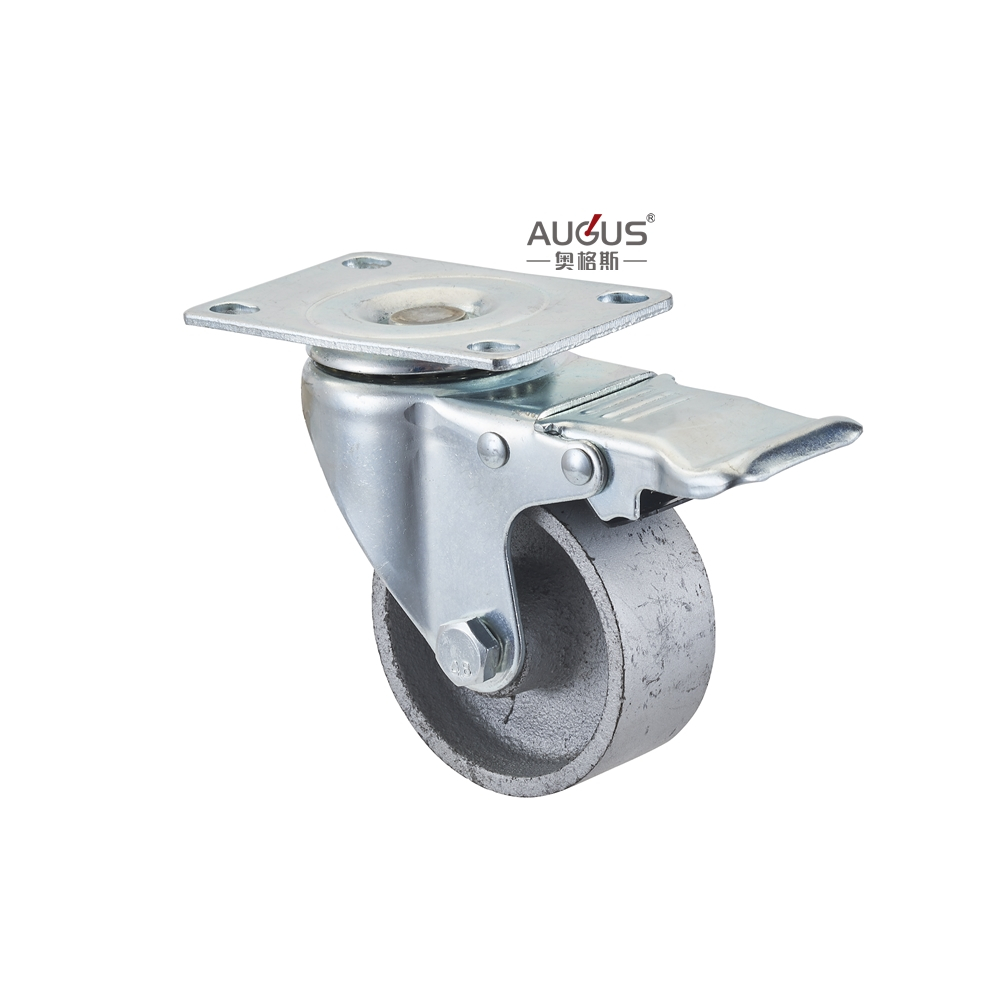

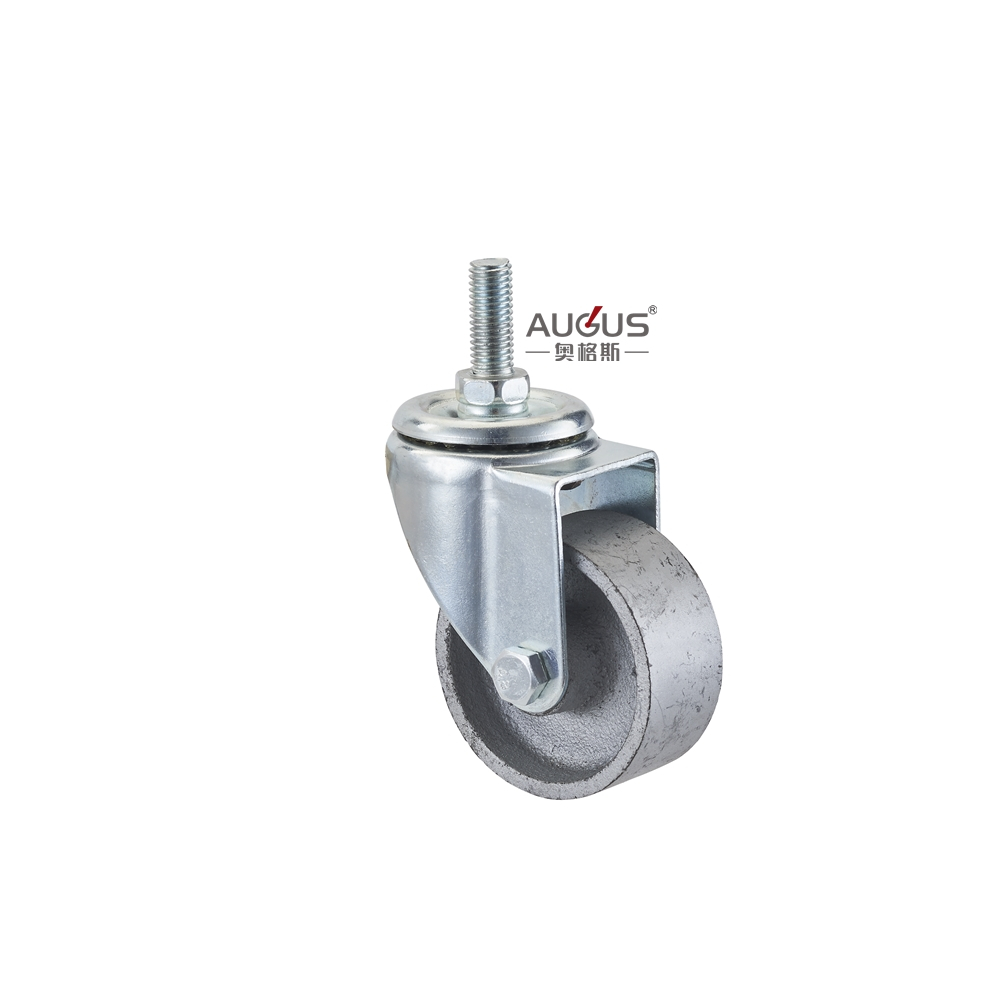

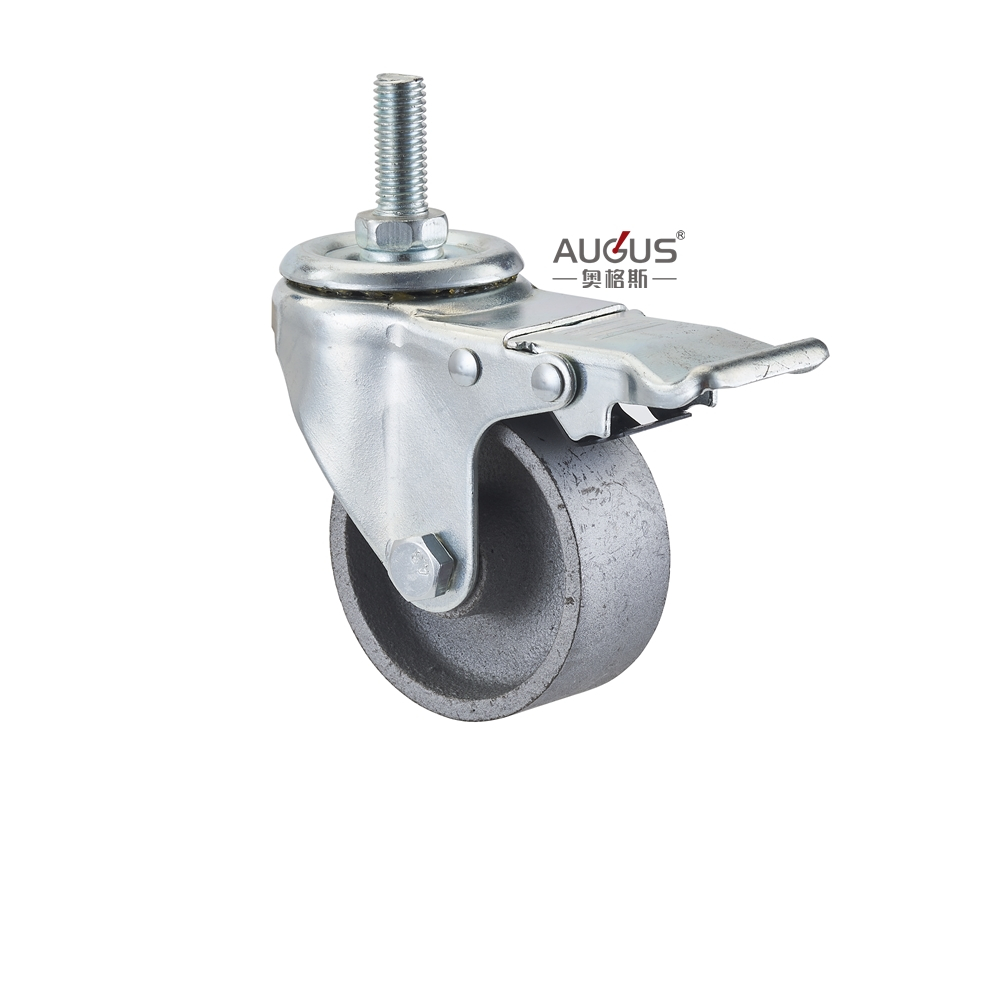

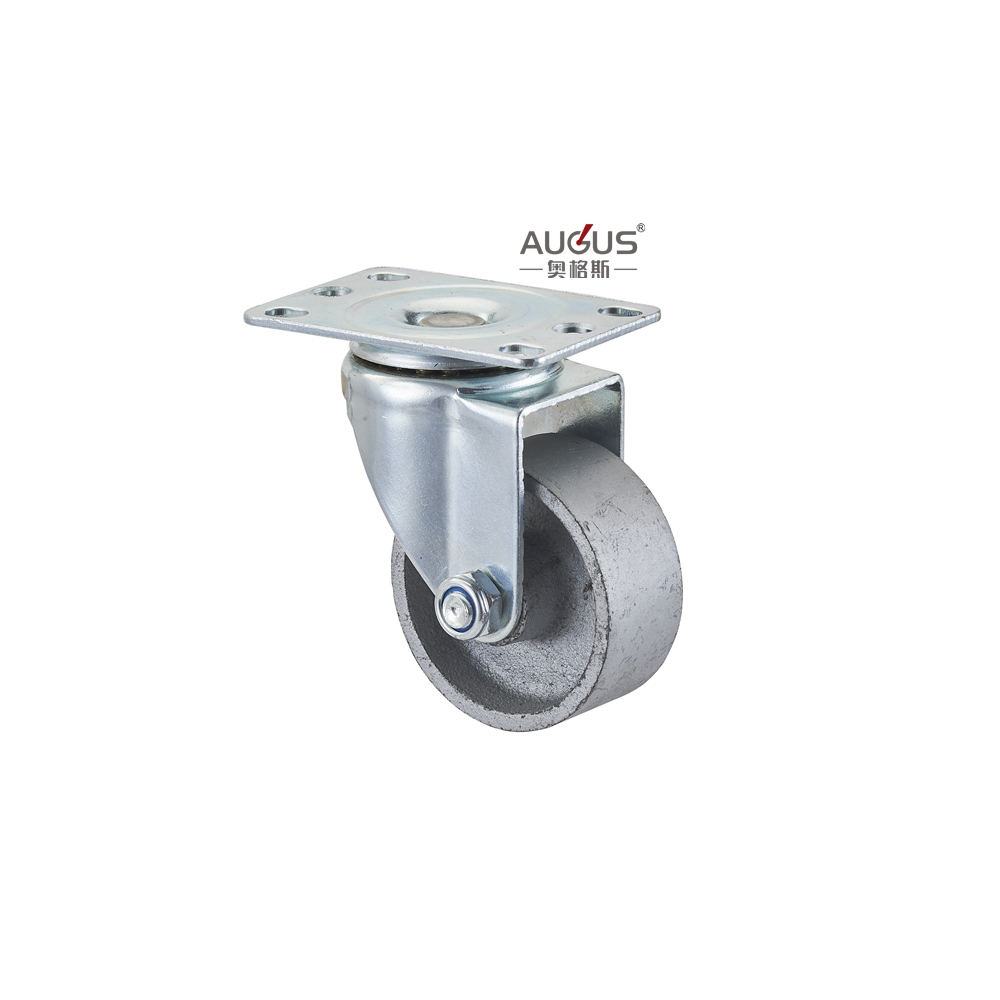

Economy Edition Medium aluminum wheel

Time
Code
Sale_price	0.00
Line_price	0.00
Stock	0
Weight	0.00

Content

Specifications
Download

Products Description

Medium Duty 02 Series
Description: Fix, Swivel, Screw, Bolt hole
Brake mode: Total brake, Side brake, Plastic brake
Bracket mode: Housing made of Pressed Steel, bright zinc plated, blue zinc plated, black lacquer, chrome plated.
Install with nut, axle and bush, the wheel tread is made of PU, the wheel center is made of PP, double bearing

Product Paramenters

Detail	2.5 inch	3 Inch	4 Inch	5 Inch
Wheel diameter (mm)	65	75	100	125
Tread width (mm)	32	32	32	32
Overall height (mm)	95	105	130	155
Load Capacity (KGS)	60	80	100	130
Size of Plate (mm)	93 x 62	93 x 62	93 x 62	93 x 62
Hole centre (mm)	73.5 x 44.5	73.5 x 44.5	73.5 x 44.5	73.5 x 44.5
Screw Size	M12*30	M12*30	M12*30	M16*30
Installation Mode	Fixed Plate Screw Hole topped Bolt	Fixed Plate Screw Hole topped Bolt	Fixed Plate Screw Hole topped Bolt	Fixed Plate Screw Hole topped Bolt
