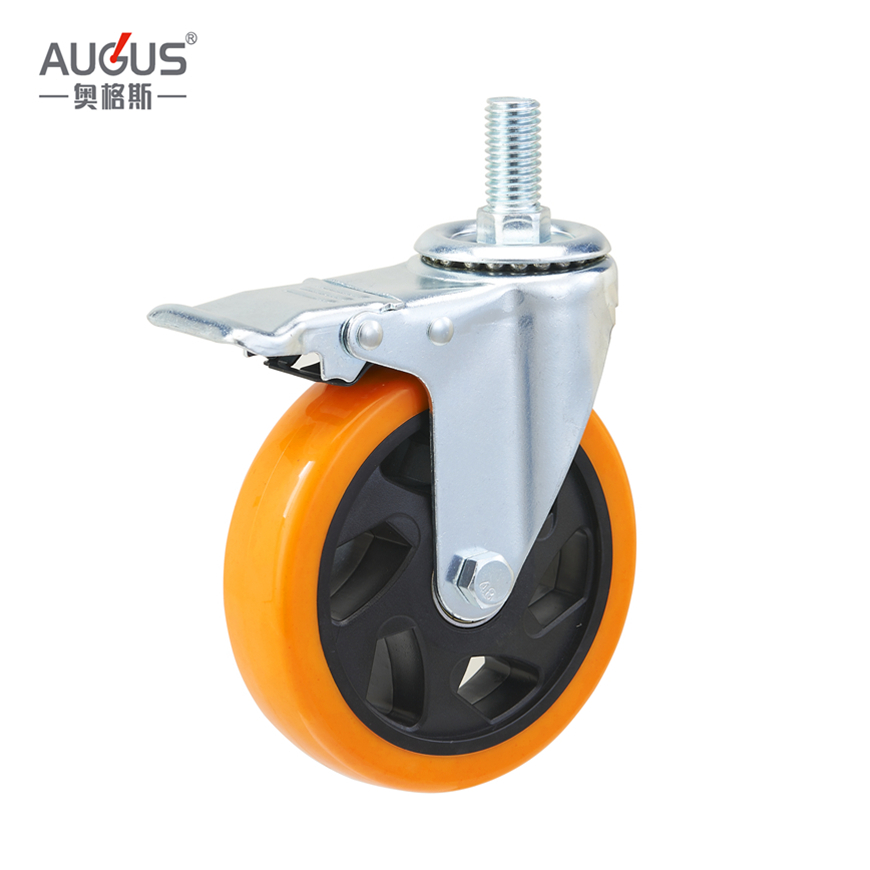

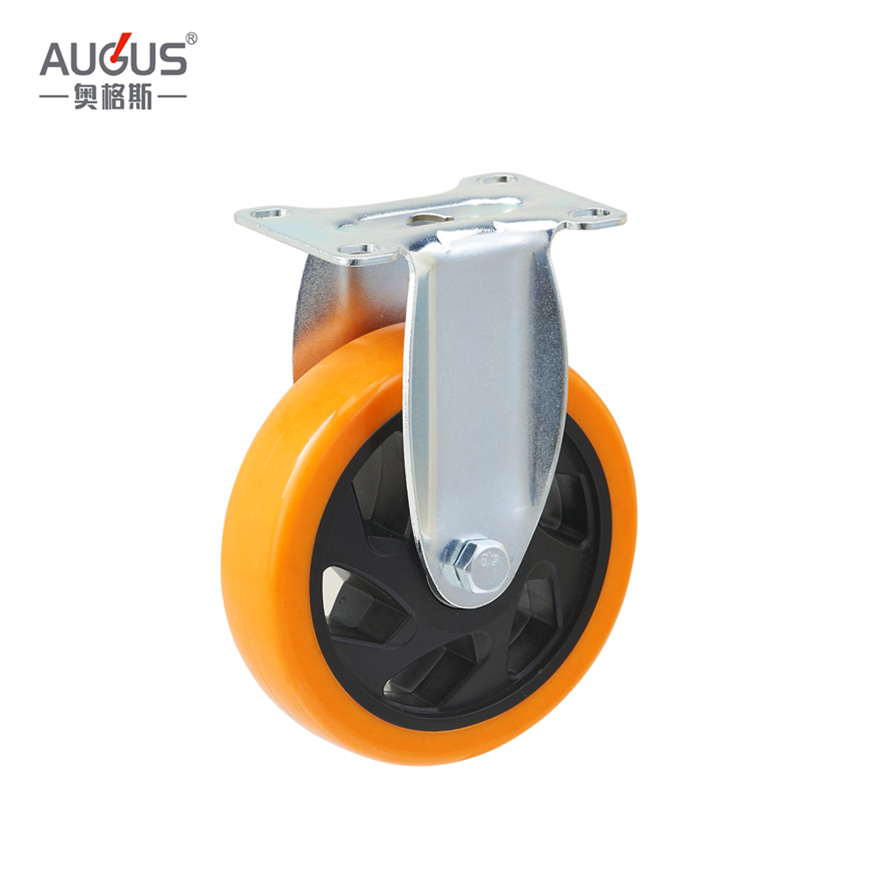

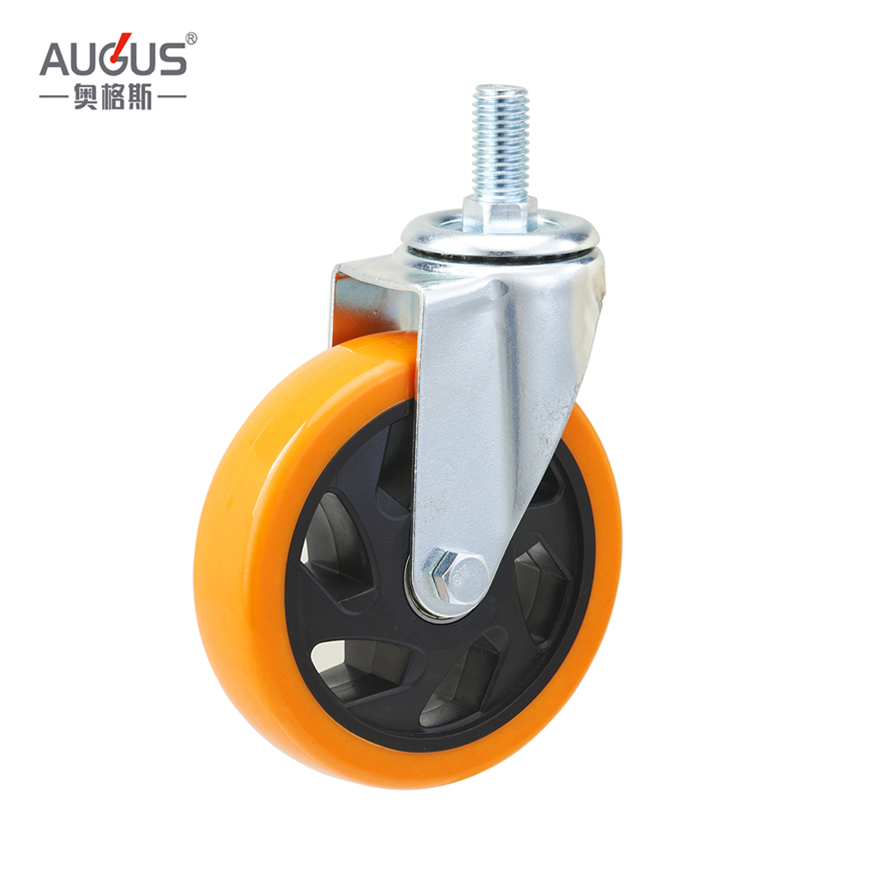

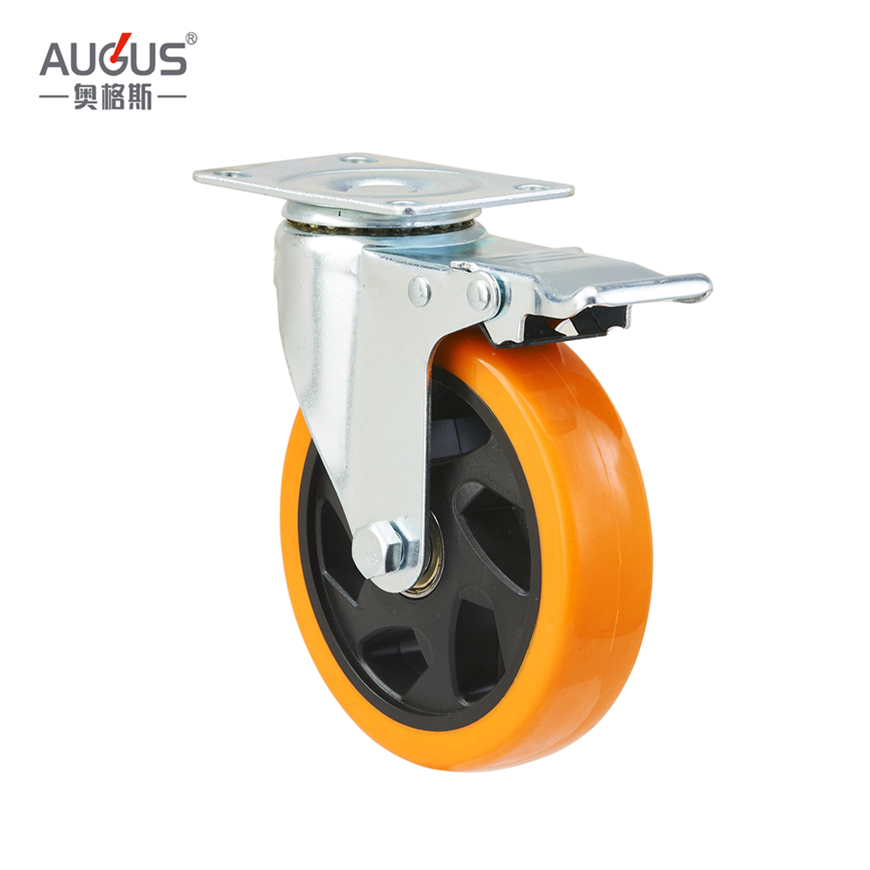

Economy version medium orange PU with PP core

Content

Products Description

MEDIUM DUTY CASTER WHEEL B

Description: Fix, Flexible, Screw，Hole Topped, Bolt。

Brake mode: Dual brake /Side brake

Housing made of pressed steel, black Lacquer, blue zinc plated.

Wheel install with axle and nut & bushing, Double ball bearing, Roller bearing

Alternative wheel materials: PU /PP/PA/TPR/Elastic Rubber/ PVC/Aluminum Core PU/Iron core PU/ Antic-Static TPR/ Black Rubber/

TECHNICAL DATA

Detail	2.5 inch	3 Inch	4 Inch	5 Inch
Wheel diameter (mm)	65	75	100	125
Tread width (mm)	32	32	32	32
Overall height (mm)	95	105	130	155
Load Capacity (KGS)	60	80	100	130
Size of Plate (mm)	93 x 62	93 x 62	93 x 62	93 x 62
Hole centre (mm)	73.5 x 44.5	73.5 x 44.5	73.5 x 44.5	73.5 x 44.5
Screw Size	M12*30	M12*30	M12*30	M16*30
Installation Mode	Fixed Plate Screw Hole topped Bolt	Fixed Plate Screw Hole topped Bolt	Fixed Plate Screw Hole topped Bolt	Fixed Plate Screw Hole topped Bolt
