Products Description

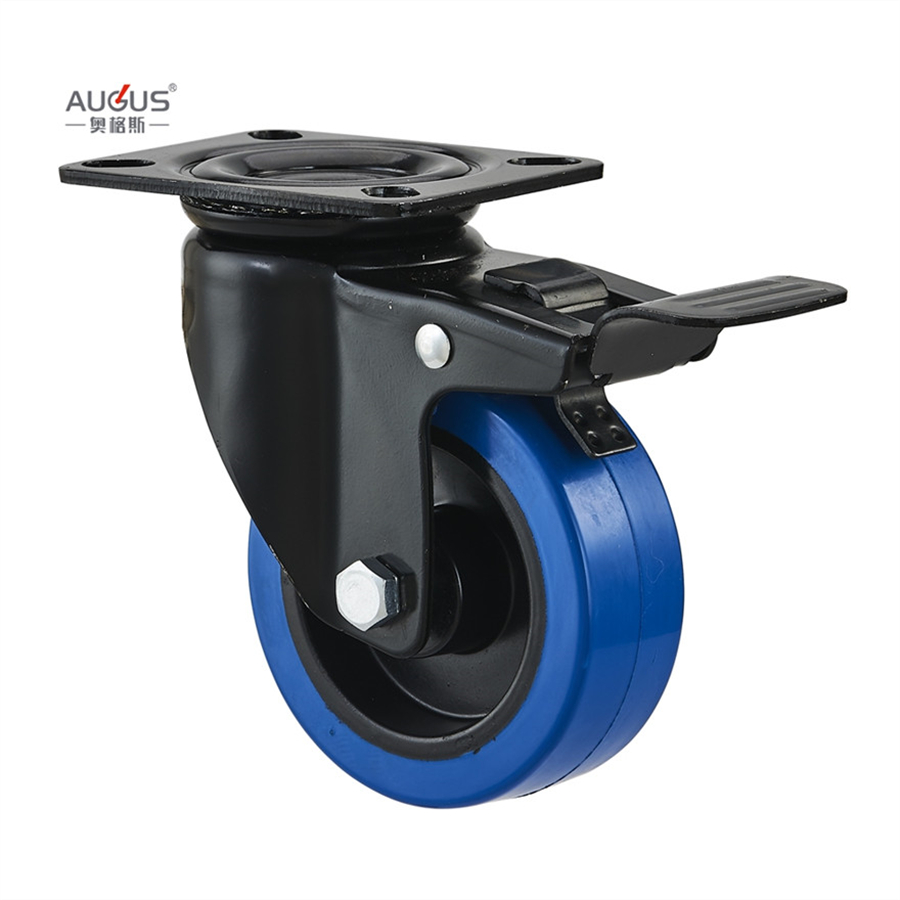

MEDIUM –HEAVY DUTY B
Description: Fix, Flexible, Screw。
Brake mode: Dual brake /Side brake
Housing made of pressed steel, black Lacquer, blue zinc plated.
Wheel install with axle and nut & bushing, Double ball bearing, Roller bearing
Alternative wheel materials: PU /PP/PA/TPR/Elastic Rubber/ PVC/Aluminum Core PU
Product Paramenters
|
Detail |
3 Inch |
4 Inch |
5 Inch |
|
Wheel diameter(mm) |
75 |
100 |
125 |
|
Tread width(mm) |
38 |
38 |
38 |
|
Overall height(mm) |
113 |
138 |
163 |
|
Load Capacity(KGS) |
100 |
130 |
150 |
|
Size of Plate(mm) |
100 x 80 |
100 x 80 |
100 x 80 |
|
Hole centre(mm) |
76 x 56 |
76 x 56 |
76 x 56 |
|
Screw Size |
M16*30 |
M16*30 |
M16*30 |
|
Installation Mode |
Fixed Plate Screw |
Fixed Plate Screw |
Fixed Plate Screw |
